Lenovo ThinkCentre M710q Power Adapter – Genuine OEM Replacement

Is your Lenovo ThinkCentre M710q Tiny desktop failing to power on? Are you experiencing random shutdowns or system instability? If so, the solution is simple: replace your failing power adapter with the Lenovo Tiny 65W or 90W AC Adapter.

This genuine OEM power adapter is the perfect replacement for your ThinkCentre M710q Tiny system. Designed specifically for Lenovo’s compact business desktops, this unit delivers reliable, stable power to get your system back to peak performance.

What Power Adapter Does the ThinkCentre M710q Need?

The Lenovo ThinkCentre M710q is a Tiny form factor desktop that uses an external power adapter, similar to a laptop charger, rather than an internal power supply . There are two main power options for this system:

65W Adapter – The standard adapter for most M710q configurations, delivering DC 20V at 3.25A . This is the most common option.

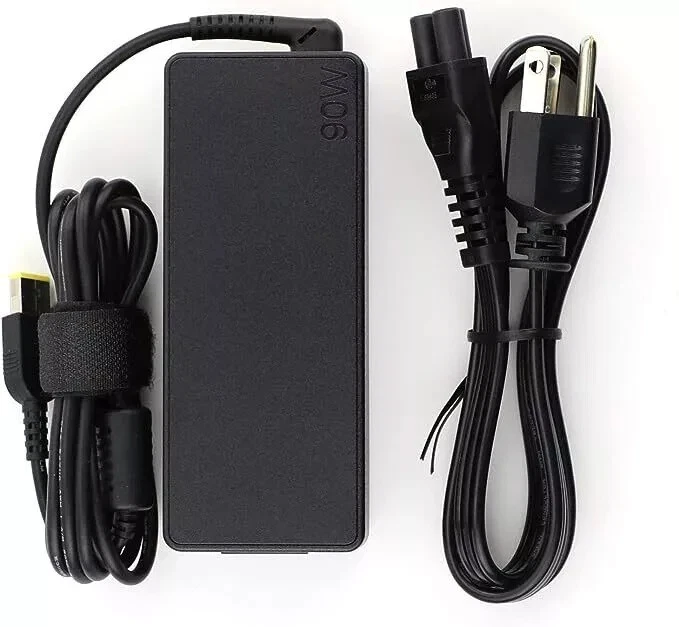

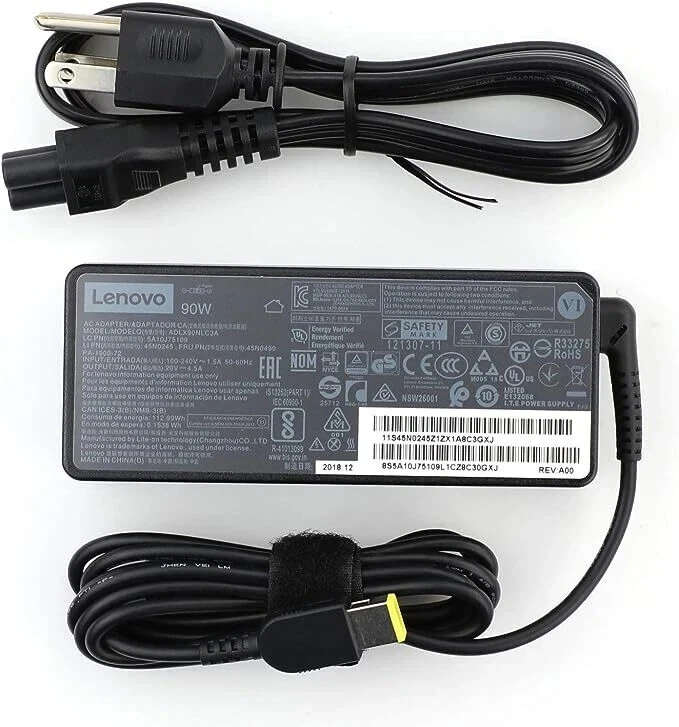

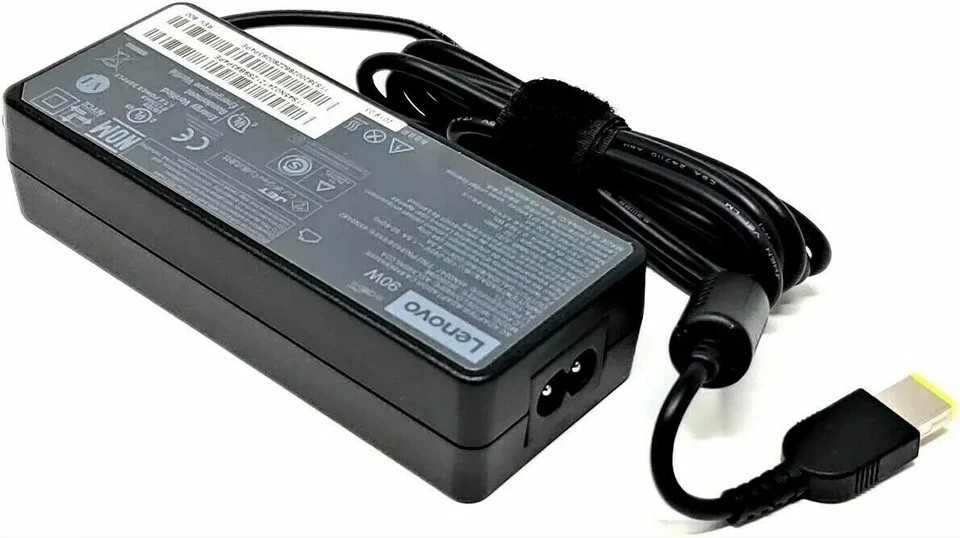

90W Adapter – A higher-power option for models with more demanding components, delivering DC 20V at 4.5A .

⚠️ Important Note: It is strongly recommended to check your original adapter’s wattage (printed on the label) or your system’s specifications before ordering. Using an underpowered adapter can cause instability, while a higher-wattage adapter is generally safe as the system will only draw what it needs .

Why Choose the Lenovo Tiny Adapter?

Genuine OEM Quality

To begin with, this is not a generic “compatible” adapter—it is a genuine Lenovo OEM component. This means it is built to Lenovo’s exact specifications, ensuring proper fitment, reliable power delivery, and long-term durability. Consequently, you can trust this unit to perform exactly as your original adapter did.

The “Slim Tip” Connector

Furthermore, these adapters use Lenovo’s proprietary Slim Tip connector (approximately 11.0 mm outer diameter, 3.0 mm inner diameter) . It is NOT compatible with older Lenovo systems that use the round power plug. This Slim Tip design is standard across Lenovo Tiny desktops.

Broad Voltage Support

Moreover, the adapter supports 100-240VAC at 50-60Hz, making it suitable for use in many regions worldwide without manual adjustment .

Energy Efficient

Finally, these adapters are Energy Efficiency Level VI certified, helping to reduce electricity consumption and lower your carbon footprint .

Is This Adapter Compatible with Your System?

This adapter is designed for the Lenovo ThinkCentre M710q and many other Lenovo Tiny desktops .

Confirmed Compatible Models

• ThinkCentre M710q (10MS, 10MR, 10MQ, 10MT, 10N3, 10QR)

• ThinkCentre M700 Tiny

• ThinkCentre M715q Tiny

• ThinkCentre M720q

• ThinkCentre M900 Tiny

• ThinkCentre M910q

• ThinkCentre M920q

• ThinkCentre M73 / M93 / M93p

Part Number Cross-Reference

Look for any of these numbers on your current adapter:

• 65W FRU: 54Y8868

• 90W FRU: 4X20E75140

• Also known under model numbers FSP065-DAAN1, PA-1650-56, and ADLX65YCC3A for the 65W variant.

Technical Specifications

Here is a detailed breakdown of everything you need to know about this power adapter.

65W Adapter Specifications

• Part Number: 54Y8868

• Power Output: 65 Watts

• Output Voltage: 20V DC

• Output Current: 3.25A

• Input Voltage: 100-240VAC (auto-switching)

• Input Frequency: 50-60 Hz

• Connector Type: Lenovo Slim Tip

• Efficiency: Energy Efficiency Level VI

• Warranty: 1-year Lenovo warranty

90W Adapter Specifications

• Part Number: 4X20E75140

• Power Output: 90 Watts

• Output Voltage: 20V DC

• Output Current: 4.5A

• Input Voltage: 100-240VAC (auto-switching)

• Input Frequency: 50-60 Hz

• Connector Type: Lenovo Slim Tip

• Efficiency: Energy Efficiency Level VI

Safety and Compliance

The Lenovo adapter meets rigorous safety and environmental standards. It includes built-in protections including Overvoltage Protection, Short Circuit Protection, and Overheating Protection to safeguard your system . It is certified by UL, TÜV, CE, and other international safety bodies .
